MixPac 50ml 3:2 ratio 2-Part Empty Cartridge with sealing cap & pistons (3:2 mix ratio) AB 050-32-10-04 (#182161) Supply

SKU: 2E2EF315438D56D2

Original price was: $2.99.Current price is: $1.50.

In Stock
Add to wishlist
  • Price match promise

  • Free delivery on all orders

  • Safe & secure transaction

  • Extended Christmas return policy

Description

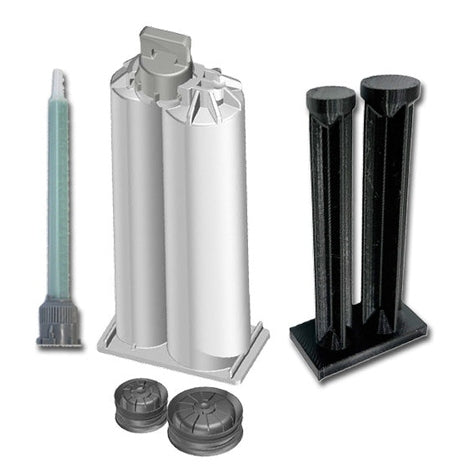

MixPac 2-Part (dual-component) 3:2 ratio 50ml Empty Cartridges with included Resealable Cap and Sealing Pistons. Used for filling and dispensing 2-part adhesives, epoxies, silicones, urethanes, and other 2-part fluids and compounds.

MixPac Cartridge Part Number: AB 050-32-10-04 (#182161)

This is the cartridge that is used for the popular 3M DP2216 and EC2216 formulas, that are a 3:2 mix ratio.

Available in 3 kit packages, plus Accessories:

  • Empty Cartridges and related Pistons
  • Starter Kit with Small Hand Plungers
  • Starter Kit with Dispenser
  • Useful Additional Accessories
    • Each kit includes different cartridge-count options… either 5, 10, 25, 50, or 100 cartridges with the necessary cap and sealing pistons to close and seal the empty cartridges.

      About the Cartridges:

      These cartridges are for storing and applying adhesives that use a 3:2 mix ratio, where precise metering and mixing is needed. These cartridges include matching pistons and a re-sealable tip (or cap). They’re ready for filling with material, storing and dispensing. These 2-Part cartridges are industrial grade and silicone free. The cartridge design fit using the B-System , also known as Square-Back . They also include an easy-to-reclose cap.

      The 2-Part design keeps the two adhesive parts separate, until a mixing nozzle is attached, where the two parts are pushed or extruded into the mixing nozzle and bonding or curing begins.

      And a key feature of this cartridge is it s easy-to-install pin-style sealing pistons, which allows air to escape as pistons are inserted, and then seals-off with the push of the blue pin.

      About the Starter Kits:

      Each Starter Kit includes either 5, 10, 25, 50, or 100 cartridges, related sealing pistons and cartridge caps, mixing nozzles (one nozzle for each cartridge in your kit), and either one  50ml dispenser or small hand plungers depending on which kit you choose.

      We recommend checking out our Starter Kits to get set up and running. Or if you prefer getting the dispenser separately, check out the MixPac DMA50 50ml Dispensers, which will enable you to dispense the adhesives out of these cartridge kits.

      Total Cartridge Length (bottom to cap tip

      4 5 8 inches

      Barrel length

      3 13 16 inches

      Total cartridge width

      1 7 8 inches

      Large Barrel Inner Diameter

      0.87 inches

      Small Barrel Inner Diameter

      0.62 inches

      Mixer Style

      Gray-Cap B-System 50ml, Helix or Quadro Square

      Total Cartridge Volume (both barrels combined)

      50ml , or 1.7oz



      NOTE: Additional accessories needed. Consider the pre-configured starter kits, or view the accessories scroll-bar below to ensure you get what you need. For example, with these empty cartridges you will also need mixing nozzles and a dispensing product to push extrude dispense the adhesive out. We recommend also getting one of our 50ml Dispensers, which will enable you to dispense the adhesives out of these cartridge kits. The mixing nozzles needed are of the bayonet design, which easily twist on and off the cartridge end. These nozzles tend to be difficult to clean and store after their first use, and therefore generally considered to be single-use accessories. These Cartridges use standard static mixer nozzles. Cartridges available in mix ratio s 1:1, 2:1, 4:1 and 10:1. Products are industrial grade safe to 100 psi and are certified silicone free. Dispensers are available for all size cartridges either in manual of pneumatic. The “A” System is comprised of a small lightweight, hand-held manual dispenser which dispenses 2-component adhesives through “B” System cartridges and motionless mixers. Cartridge systems are available in a variety of volumetric ratios. Please be sure to select the correct ratio for your two component system.

      Additional information

      Which Kit?

      Cartridges & Pistons, Starter Kit with Hand Plunger, Starter Kit with Dispenser, Accessories

      Quantity or Kit Quanity

      Singles (Samples), Bulk 1250-Pack, Bulk 7500-Pallet, 5-Pack Kit, 10-Pack Kit, 25-Pack Kit, 50-Pack Kit, 100-Pack Kit, Piston Insertion Tool, Piston Blow-Out Adapter, Extra Hand Plunger
